Hardware Junction Box: Picking Systems.

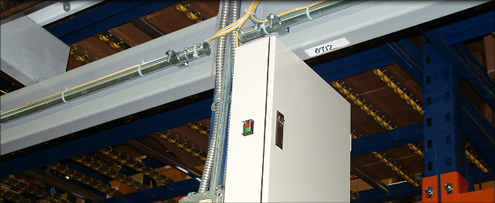

In order to control various devices, such as light modules, control terminals (e.g., PC) are necessary. The controller and junction box are used to connect control terminals with various devices. The junction box connects to the controller and supplies the electric power and signals to devices, such as light modules and batch displays.
| Features of the Junction Box. |
|---|
|
-A maximum of 160 light modules can be connected. Different types of junction boxes are available according to the numbers of connected light modules. -Applicable to different system scales. Regardless of the scale of the installed system, AI-NET will allow you to select a system that can expand according to the connected devices. |
Junction Box Products.
Junction Box 1.
> TW2201.
> Can control up to 160 Light Modules.
> Connection: Up to 5 Signal Light units.
> Connection: Up to 1 Batch Display unit.
> Power Requirements: AC85V – 264V.
> Size (mm): 370 x 290 x 91.
Junction Box 2.
> TW2202.
> Can control up to 64 Light Modules.
> Connection: Up to 5 Signal Light units.
> Connection: Up to 1 Batch Display unit.
> Power Requirements: AC85V – 264V.
> Size (mm): 370 x 290 x 91.
Small Junction Box 1.
> TW2203.
> Can control up to 20 Light Modules.
> Power Requirements: DC18V – 27V.
> Size (mm): 180 x 40 x 83.
Small Junction Box 2.
> TW2204.
> Can control up to 20 Light Modules.
> Power Requirements: DC11V – 14V.
> Size (mm): 180 x 40 x 83.
Junction Box 3.
> TW2207.
> Can control up to 320 Light Modules.
> Connection: Up to 10 Signal Light units.
> Connection: Up to 2 Batch Display unit.
> Power Requirements: AC 85V – 256V.
> Size (mm): 370 x 290 x 180.
Ethernet Junction Box.
> TW2208.
> Can control up to 5,120 Light Modules.
> Connection: Up to 160 Signal Light units.
> TCP / IP Communication Protocol.
> 10Base-T.
> Power Requirements: AC85V – 264V.
> Size (mm): 370 x 290 x 130.
Junction Box.
> AW2211.
> 24V type.
> Size (mm): 280 x 205 x 83.
